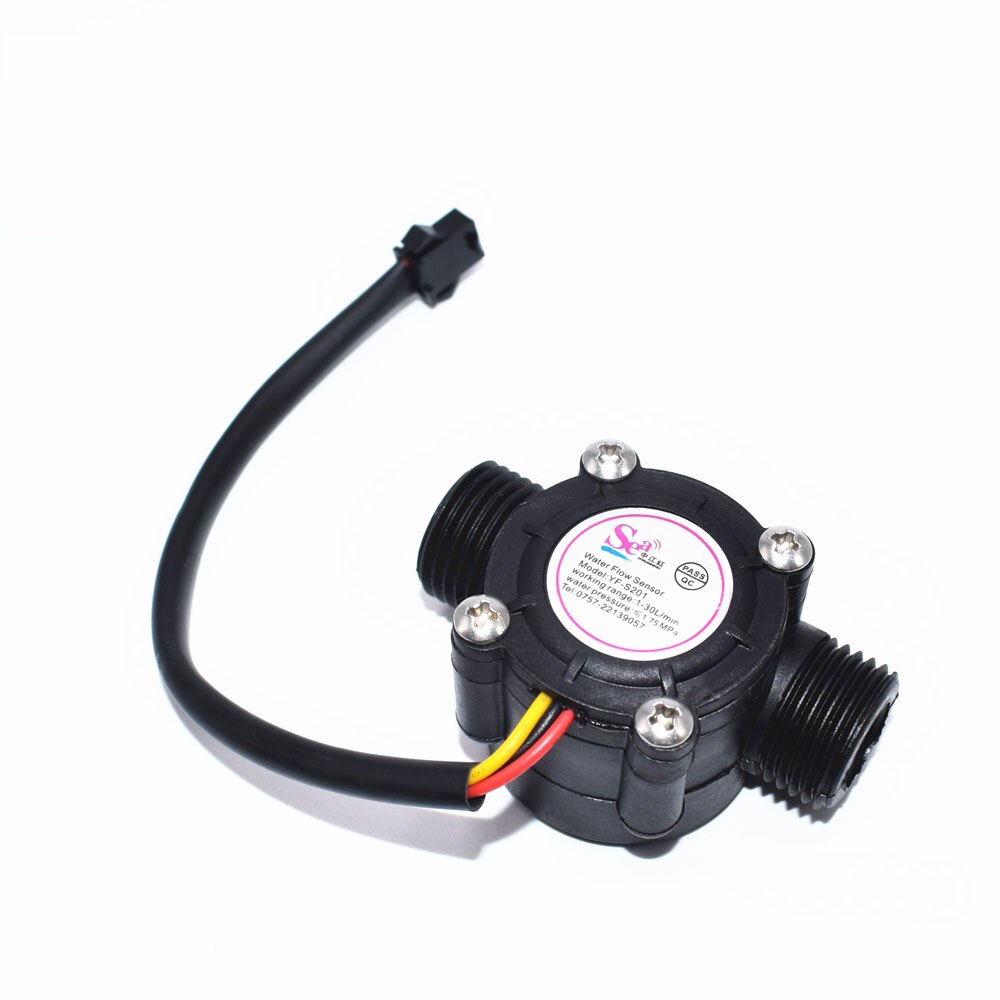

Water flow sensor (Sea) YF-S201 Flowmeter G1/2 1-30L/min Black

The Water flow sensor (Sea) YF-S201 Flowmeter measures how much water passes through a pipe. Inside, a small turbine spins with the flow, and a magnet and Hall-effect sensor produce pulses at a rate proportional to the flow, so an Arduino or ESP32 can count them to calculate flow rate and total volume. It has G1/2 threaded ends and covers 1 to 30 L/min.

Water flow sensor YF-S201 Specifications

• Model: YF-S201
• Sensor type: turbine with Hall-effect pulse output
• Flow range: 1–30 L/min
• Connection: G1/2 thread
• Working voltage: 4.5–18 V DC
• Current draw: up to 15 mA at 5 V
• Pulse output: frequency (Hz) = 7.5 × flow (L/min), about 450 pulses per litre
• Wires: red (+V), black (GND), yellow (pulse signal)
• Colour: black

Water flow sensor Applications

• DIY water meters and consumption monitors
• Water dispensers that pour a set volume
• Garden irrigation and tank filling control
• Leak detection and flow alarms on ESP32 IoT dashboards

What's in the Box

• 1 × YF-S201 water flow sensor, G1/2, black

Tip: Connect the yellow wire to an interrupt pin (D2 on the Arduino Uno) and count pulses for one second: flow in L/min = pulses ÷ 7.5. If you power the sensor at 5 V and read it with an ESP32, add a voltage divider on the signal line to keep it at 3.3 V, and fit the sensor with the arrow on the body pointing in the direction of flow.
