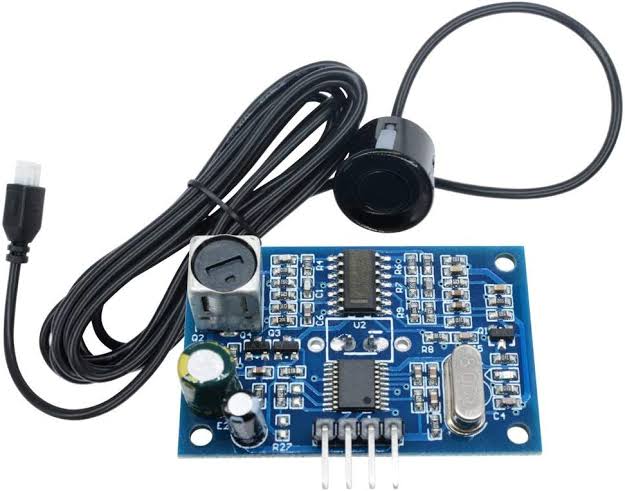

Waterproof Ultrasound Sensor JSN-SR04T

The Waterproof Ultrasound Sensor JSN-SR04T measures distance with 40 kHz ultrasonic pulses, like the popular HC-SR04, but its transducer is a sealed waterproof probe connected to the control board by a long cable. That makes it a good choice for water tank level meters, outdoor projects and car parking sensors where moisture and dust would damage an open sensor.

Waterproof Ultrasound Sensor JSN-SR04T Specifications

• Operating voltage: 5 V DC
• Working current: about 30 mA
• Ultrasonic frequency: 40 kHz
• Measuring range: 25 cm to 450 cm
• Pins: 5V, Trig, Echo and GND, using the same trigger and echo timing as the HC-SR04
• Probe: sealed waterproof transducer on a 2.5 m cable

Waterproof Ultrasound Sensor JSN-SR04T Applications

• Water tank and well level monitoring
• Car reversing and parking sensors
• Outdoor robots and obstacle detection
• Bin fill-level and liquid level projects with Arduino or ESP32

What's in the Box

• 1 × JSN-SR04T control board
• 1 × waterproof ultrasonic probe with cable

Tip: Mount the probe at least 25 cm above the highest water level, because objects closer than the minimum range are not measured reliably. With a 3.3 V board such as the ESP32, power the sensor from 5 V and reduce the Echo signal with a voltage divider.
