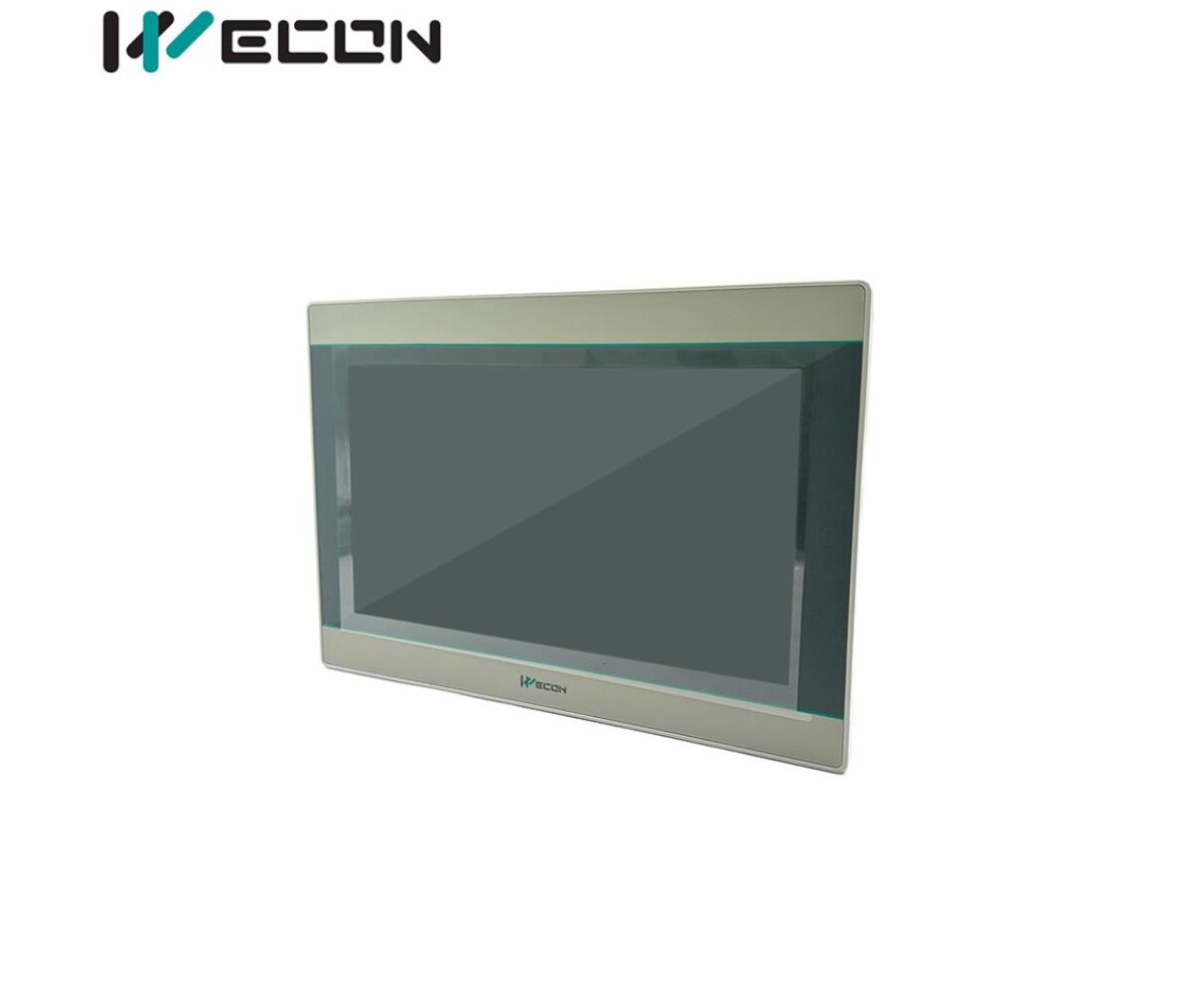

Wecon HMI PI 3102 (10.2")

The Wecon HMI PI 3102 is a 10.2-inch industrial touch panel with a 1024 × 600 TFT display, 128 MB flash and 128 MB RAM. It connects to PLCs, inverters and controllers over RS-232, RS-422 and RS-485 serial ports, runs on 24 VDC, and is programmed with Wecon's PIStudio software, making it a solid operator panel for machines and process control.

Wecon HMI PI 3102 Specifications

• Brand: Wecon (PI3000 series)
• Screen: 10.2-inch TFT LCD
• Resolution: 1024 × 600
• Memory: 128 MB flash, 128 MB RAM
• Serial ports: RS-232, RS-422, RS-485
• Power supply: 24 VDC
• Mounting: Panel mount
• Software: PIStudio

Wecon HMI PI 3102 Applications

• Operator panels for PLC-controlled machines
• Monitoring setpoints, alarms and trends
• Recipe and production data screens
• Water treatment, HVAC and packaging systems
• Serial networks with PLCs, VFDs and temperature controllers

What's in the Box

• 1 × Wecon PI 3102 10.2-inch HMI

Tip: When you create a project in PIStudio, choose your PLC's brand and protocol first so the panel talks to it directly. Power it from a stable 24 VDC supply in the control cabinet.
