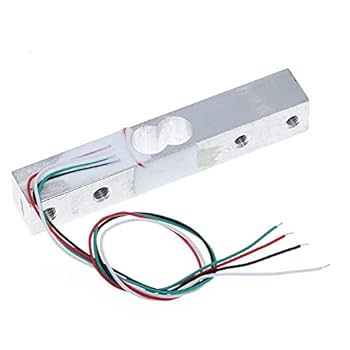

Weighing Load Cell Sensor 10Kg for Electronic Kitchen Scale YZC-133 With Wires

The Weighing Load Cell Sensor 10Kg YZC-133 is a straight bar load cell with pre-attached wires, the type used inside electronic kitchen scales. Strain gauges bonded to the bar form a Wheatstone bridge whose tiny output changes with the load, and an HX711 amplifier module turns that signal into a weight reading on an Arduino or ESP32 for scales up to 10 kg.

Weighing Load Cell Sensor 10Kg Specifications

• Model: YZC-133
• Capacity: 10 kg
• Type: straight bar strain gauge load cell, full bridge
• Wires: 4, pre-attached (excitation + and −, signal + and −)
• Use with: HX711 24-bit load cell amplifier
• Mounting: mounting holes at each end of the bar

Weighing Load Cell Sensor 10Kg Applications

• Digital kitchen and parcel scales
• IoT weight monitoring for pet feeders, plant pots or stock shelves
• Force and weight experiments in physics and engineering labs
• Smart bins and tank level by weight

What's in the Box

• 1 × YZC-133 10 kg load cell with wires

Tip: Fix one end of the bar to a base and the other end to the weighing platform with spacers, so the middle can bend freely. The usual colour code is red E+, black E−, green A+ and white A−, but check the label on your cell, then calibrate with a known weight.
