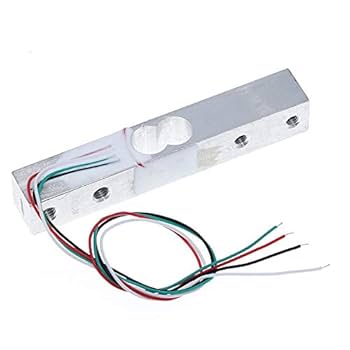

Weighing Load Cell Sensor 20Kg for Electronic Kitchen Scale YZC-133 With Wires

The Weighing Load Cell Sensor 20Kg is a YZC-133 strain gauge load cell with a 20 kg capacity, the type used inside electronic kitchen scales. It comes with its wires attached and gives a small voltage that changes with the load placed on it. Paired with an HX711 amplifier module, it lets an Arduino, ESP32 or Raspberry Pi measure weight and force accurately.

Weighing Load Cell Sensor 20Kg Specifications

• Model: YZC-133
• Rated capacity: 20 kg
• Type: strain gauge bar load cell, full Wheatstone bridge
• Wires: 4, normally red E+, black E−, green A+ (signal +) and white A− (signal −)
• Rated output: about 1.0 mV/V
• Amplifier needed: yes, for example an HX711 module (not included)

Weighing Load Cell Sensor 20Kg Applications

• Digital kitchen, parcel and luggage scales
• Weighing plant pots, pet bowls or water tanks with a data logger
• Force and tension measurement
• IoT scales that send the weight to a phone or dashboard
• STEM and university measurement labs

What's in the Box

• 1 × YZC-133 20 kg load cell with wires

Tip: Fix one end of the load cell to a rigid base and the other end to the weighing platform so the force passes only through the bar, and follow the arrow on the body for the load direction if there is one. Do not exceed 20 kg, as overloading can permanently damage the strain gauges.
