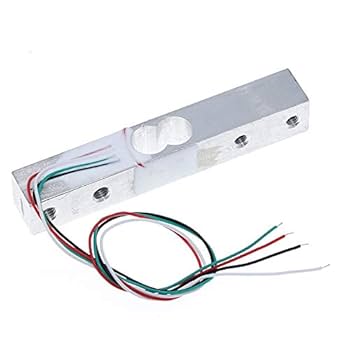

Weighing Load Cell Sensor 3Kg for Electronic Kitchen Scale YZC-131 With Wire

The Weighing Load Cell Sensor 3Kg is a YZC-131 strain gauge load cell rated for up to 3 kg, the kind used inside small electronic kitchen scales. It comes with its wire attached and outputs a very small voltage that changes with the weight placed on it. Connect it to an HX711 amplifier module and an Arduino, ESP32 or Raspberry Pi to build your own digital scale.

Weighing Load Cell Sensor 3Kg Specifications

• Model: YZC-131
• Rated capacity: 3 kg
• Type: strain gauge bar load cell, full Wheatstone bridge
• Wires: 4, usually red E+, black E−, green A+ (signal +) and white A− (signal −); check the label
• Amplifier needed: yes, for example an HX711 module (not included)
• Pack size: 1 piece

Weighing Load Cell Sensor 3Kg Applications

• Kitchen, coffee and postal scales up to 3 kg
• Monitoring the remaining filament on a 3D printer spool
• Smart pet feeders and portion scales
• Measuring small forces in experiments
• STEM and university measurement labs

What's in the Box

• 1 × YZC-131 3 kg load cell with wire

Tip: Mount the load cell between a fixed base and a weighing plate using spacers so the bar can bend freely, and load it in the direction of the arrow on the body if one is marked. Calibrate with a known weight in your HX711 sketch and never exceed 3 kg.
