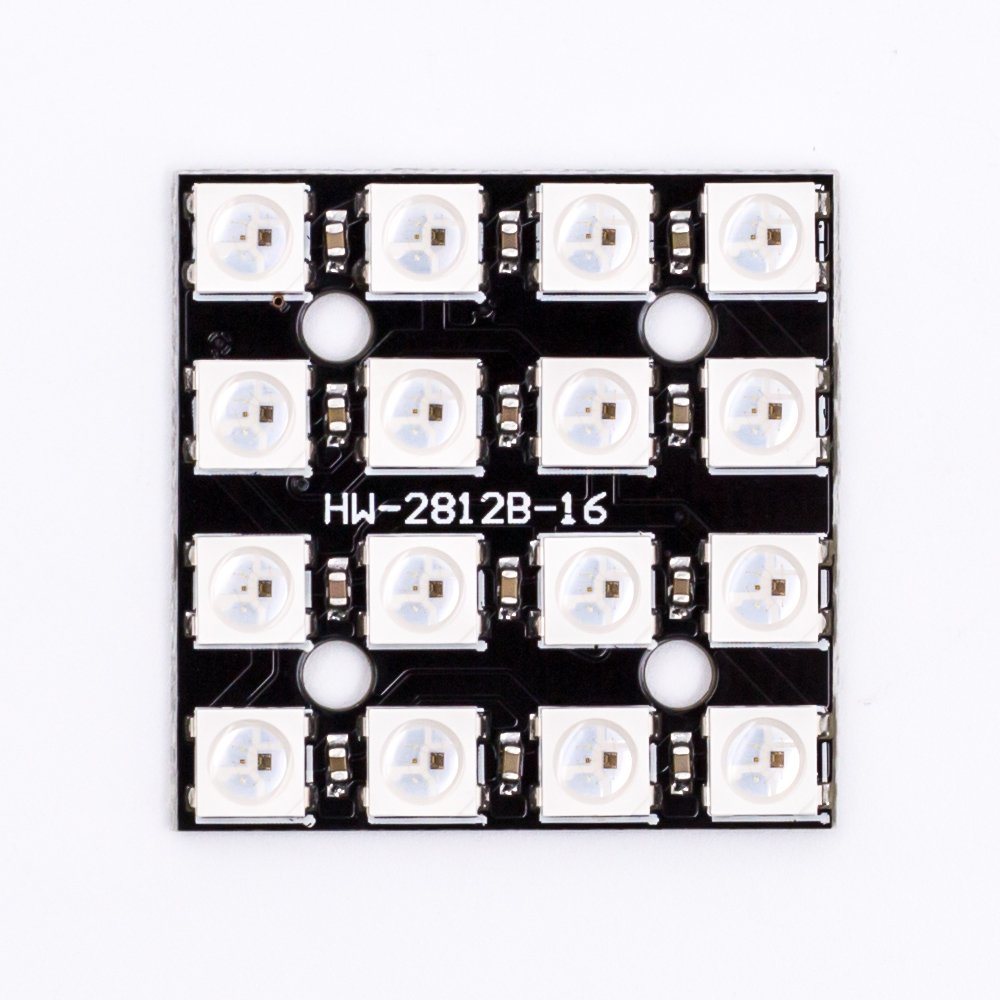

WS2812B 4*4 RGB LED Module

The WS2812B 4*4 RGB LED Module is a small board with 16 WS2812B smart RGB LEDs arranged in a 4 × 4 grid. Each LED has its own built-in driver chip, so every pixel can show any colour and brightness, all controlled from a single data pin of an Arduino, ESP32 or Raspberry Pi. Boards can be chained to build bigger matrices and lighting effects.

WS2812B 4*4 RGB LED Module Specifications

• LEDs: 16 × WS2812B (5050 size) in a 4 × 4 matrix
• Control: individually addressable, single-wire data signal
• Colour depth: 24-bit, 256 levels each for red, green and blue
• Supply voltage: 5 V DC
• Current: up to about 60 mA per LED at full white, about 1 A for the whole board
• Connections: data in, data out for chaining, 5 V and GND

WS2812B 4*4 RGB LED Module Applications

• Mini pixel displays, icons and emoji
• Status and notification lights
• Lighting effects with WLED on an ESP32 or ESP8266
• Wearables, cosplay and art installations
• Games, clocks and music visualisers

What's in the Box

• 1 × WS2812B 4 × 4 RGB LED module

Tip: Add a 330 Ω resistor in series with the data line and a 470–1000 µF capacitor across 5 V and GND, and join the controller's ground to the LED supply ground. The Adafruit NeoPixel and FastLED libraries drive these LEDs with a few lines of code.
