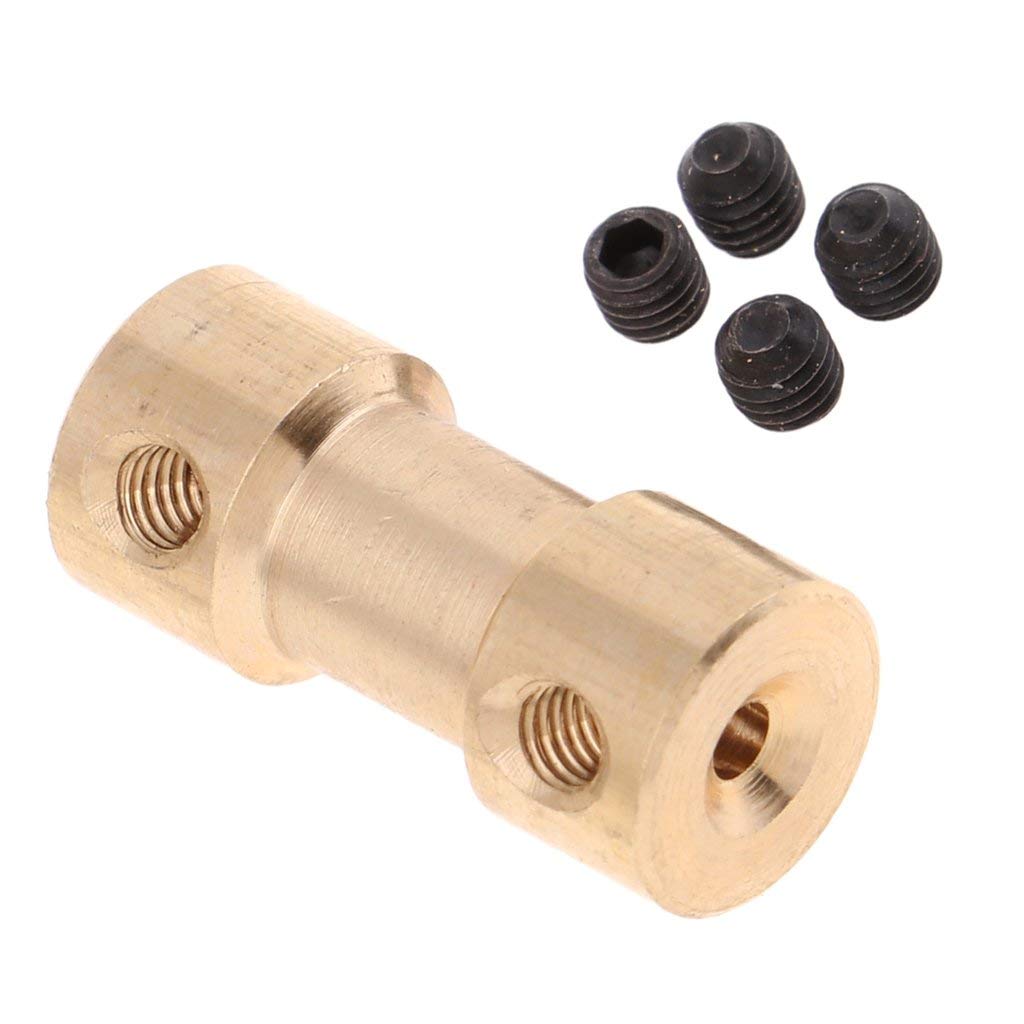

Brass Coupler (3.17-5mm)

The Brass Coupler (3.17-5mm) is a rigid brass shaft coupler with a 3.17 mm (1/8 in) bore on one end and a 5 mm bore on the other. The 1/8 in shaft is common on RC motors, while 5 mm is the standard shaft size of NEMA 17 stepper motors and many drive shafts, so this coupler is useful for adapting one to the other in models, robots and small machines.

Brass Coupler (3.17-5mm) Specifications

• Type: rigid shaft coupler (shaft size adapter)
• Material: brass
• Bore sizes: 3.17 mm (1/8 in) and 5 mm
• Fixing: set (grub) screws clamp each shaft
• Alignment: joins two round shafts on the same axis

Brass Coupler (3.17-5mm) Applications

• Joining a 1/8 in RC motor shaft to a 5 mm drive shaft
• Adapting a 5 mm motor shaft to a 3.17 mm rod or axle
• RC boats, cars and aircraft
• Robots, CNC and 3D printer experiments

What's in the Box

• 1 × brass coupler, 3.17 mm to 5 mm

Tip: A rigid coupler needs the two shafts to be well aligned. For a stepper motor driving a long lead screw, a flexible coupler is usually the better choice because it tolerates small misalignment.
