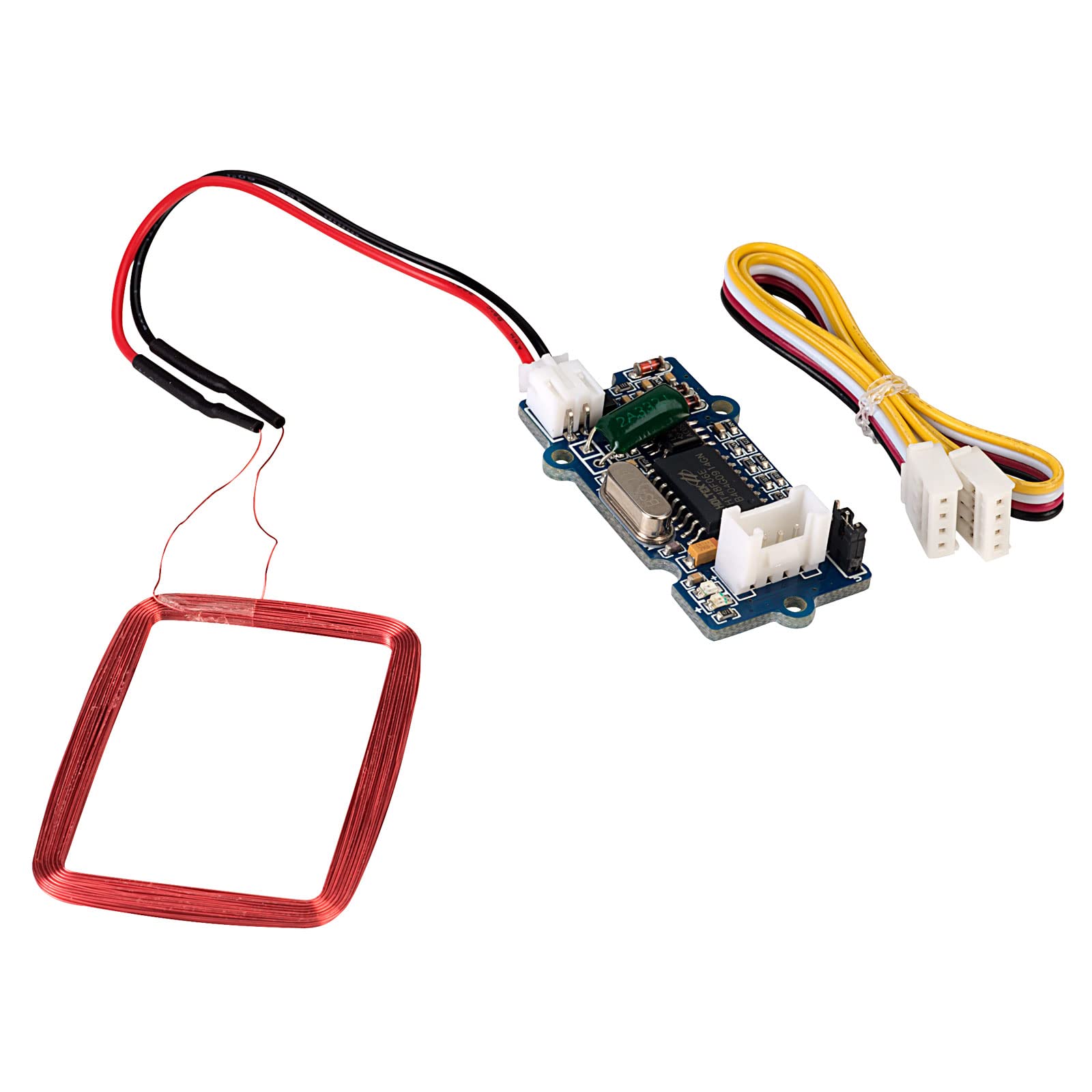

Grove 125KHz RFID Reader

The Grove 125KHz RFID Reader is a low-frequency RFID module that reads the ID number of 125 kHz cards, key fobs and tags. It sends the tag ID to your microcontroller over a simple UART serial link or in Wiegand format, and its Grove connector plugs straight into a Grove shield, so you can build door access systems, attendance logs and inventory trackers with an Arduino or similar board.

Grove 125KHz RFID Reader Specifications

• Frequency: 125 kHz
• Supported tags: EM4100-compatible read-only 125 kHz cards and fobs
• Read distance: up to about 7 cm, depending on the tag
• Output: UART at 9600 baud, or Wiegand (selectable)
• Supply voltage: 5 V
• Antenna: external coil antenna
• Connector: Grove 4-pin

Grove 125KHz RFID Reader Applications

• Door locks and access control
• Attendance and time tracking
• Inventory and asset tagging
• Games and toys that recognise tagged tokens
• Security and smart-home projects

What's in the Box

• 1 × Grove 125KHz RFID Reader module

Tip: This reader works only with 125 kHz tags; 13.56 MHz MIFARE cards need an RC522 or PN532 reader instead. Keep the antenna away from metal surfaces, which shorten the read distance.
