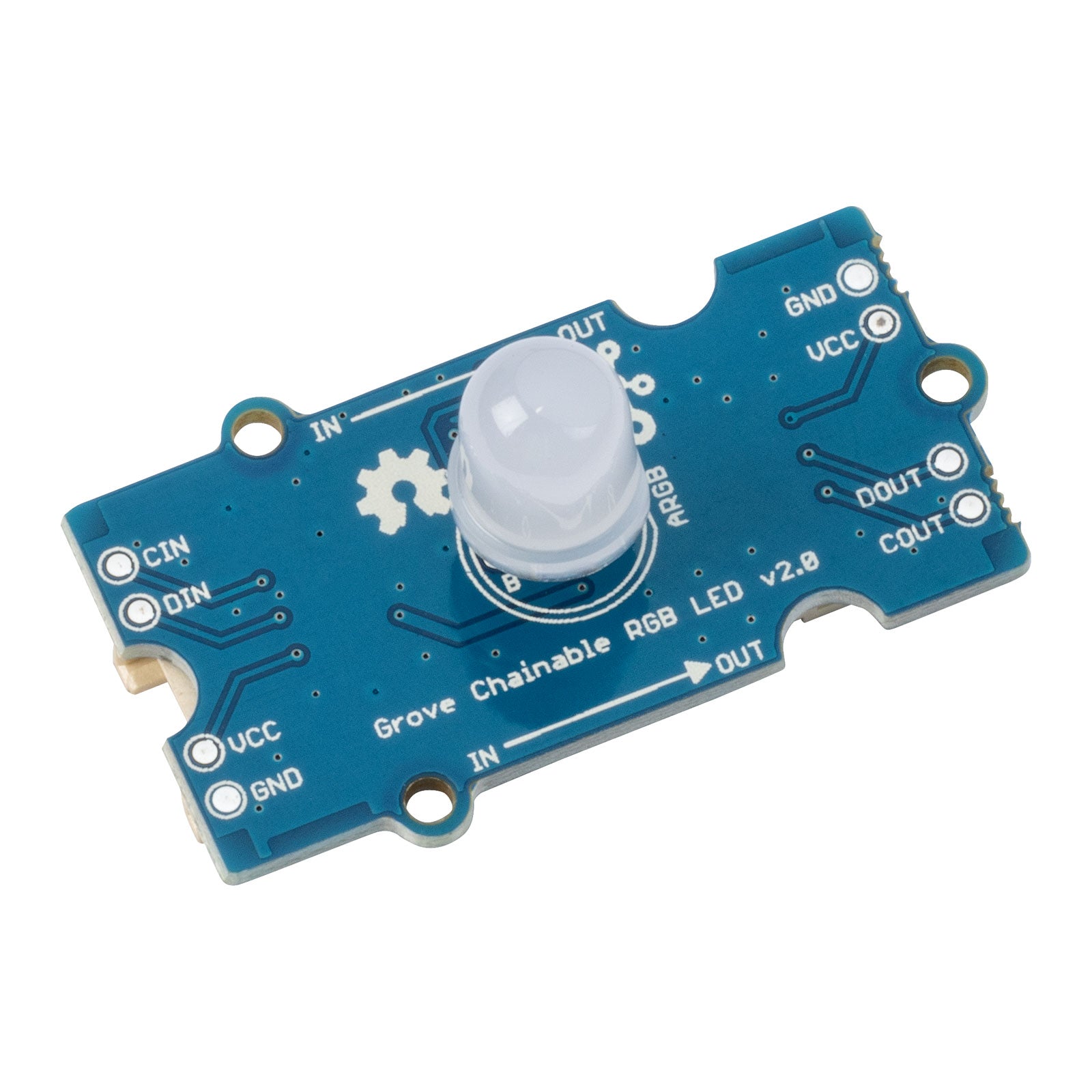

Grove Chainable RGB LED V2.0

The Grove Chainable RGB LED V2.0 is a Seeed Grove module with one full-colour RGB LED controlled by a P9813 driver chip. Each module has an IN and an OUT Grove connector, so you can link several modules in a chain and still set the colour of every LED individually from just two pins of your Arduino or other microcontroller. No soldering is needed: it plugs into a Grove Base Shield with a standard Grove cable.

Grove Chainable RGB LED V2.0 Specifications

• LED: 1 × RGB LED per module
• Driver chip: P9813
• Colour control: 256 levels per channel (24-bit colour)
• Connectors: 2 × Grove (IN and OUT) for daisy-chaining
• Control signals: clock and data, 2 pins
• Compatibility: Arduino, Seeeduino and other boards with Grove ports

Grove Chainable RGB LED V2.0 Applications

• Status and notification lights for IoT projects
• Colour indicators for sensor readings such as temperature
• Mood lamps and decorative light chains
• Teaching RGB colour mixing in STEM lessons
• Feedback lights for robots and games

What's in the Box

• 1 × Grove Chainable RGB LED V2.0 module

Tip: Connect the IN port to your board and the OUT port to the IN port of the next module. Install the ChainableLED library in the Arduino IDE, set the number of LEDs in the chain, then set each LED by its position with red, green and blue values from 0 to 255.
