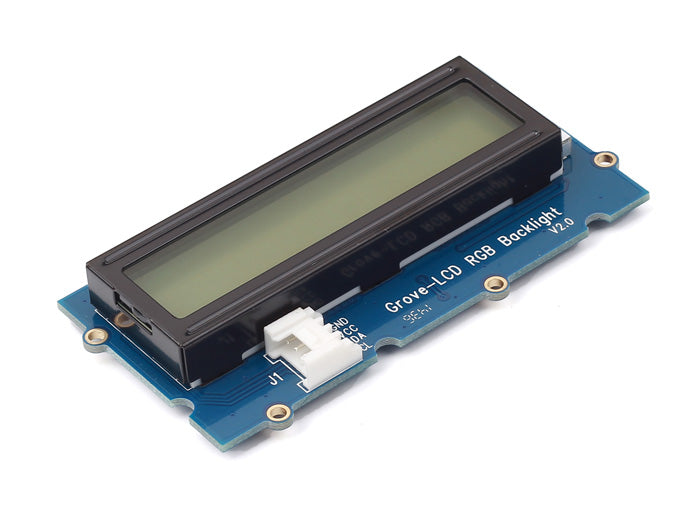

Grove LCD 16x2 RGB Backlight

The Grove LCD 16x2 RGB Backlight is a 16-character by 2-line LCD with a full-colour RGB backlight, made for Seeed Studio's Grove system. It connects with a single 4-pin Grove cable over I2C, so it uses only two data pins on your Arduino or other board, and you can set the backlight to any colour from code to show status or alarms.

Grove LCD 16x2 RGB Backlight Specifications

• Display: 16 characters × 2 lines
• Backlight: RGB, colour set from code (up to 16 million colours)
• Interface: I2C
• Connector: 4-pin Grove (VCC, GND, SDA, SCL)
• Compatibility: Arduino and Seeeduino with a Grove Base Shield, Raspberry Pi with a Grove HAT
• Library: Grove-LCD RGB Backlight library for Arduino

Grove LCD 16x2 RGB Backlight Applications

• Showing sensor readings such as temperature and humidity
• Menus and status screens for Arduino projects
• Colour-coded alarms and warnings
• Classroom projects with Grove starter kits

What's in the Box

• 1 × Grove LCD 16x2 RGB Backlight module

Tip: Plug it into an I2C port on a Grove Base Shield, install the Grove-LCD RGB Backlight library and call setRGB() to change the backlight colour. Check the supply voltage your board version needs before powering it from a 3.3 V board.
